Scale magnifier are used for Visual and measuring control on the plane surfaces. Measurement is performed by using a measuring scale in the lens field of view.
Magnifiers comply to instruction of visual and measurement control of РД 03-606-03.
Each item has own pack and passport. If necessary, magnifiers can be provide with a certificate of calibration.
| Technical specification |
Scale magnifier ЛИ-3-10х |
Scale magnifierL11 |
Scale magnifierL30 |
| Zoom factor |
10х |
10х |
10х |
| Scale length, mm |
15 |
11 |
30 |
| Graduating mark, mm |
0,1 |
0,1 |
0,1 |
| Dimensions, mm |
30х32 |
20х34 |
40х42 |
| Weight, g |
15 |
20 |
80 |
| Photo |
|
|
 |
Universal gauge of Krasowski (УШК-1)
|
Template is designed to control the lap and butt-welded joints, as well as to measure the gap between the edges during the visual and measurement control according to РД 03-606-03
|
Universal measuring gauge №2 (УШС-2)
|
УШС-2 is designed to control the legs of fillet welds in the range of 4-14 mm in accordance with the requirements of СТБ 1133-98
|
Universal measuring gauge №3 (УШС-3)
|
УШС-3 is designed to control the pipes and welds in stages of preparation for welding and measuring control
|
Piece
|
Piece for checking and marking angles of the controlled objects. Size 100h160, II accuracy class
|
Vernier caliper
|
Caliper Is used to measure the interior and exterior dimensions, and depths of the controlled objects. Model ШЦ-1-125-0.1 range 0-125mm., I accuracy сlass
|

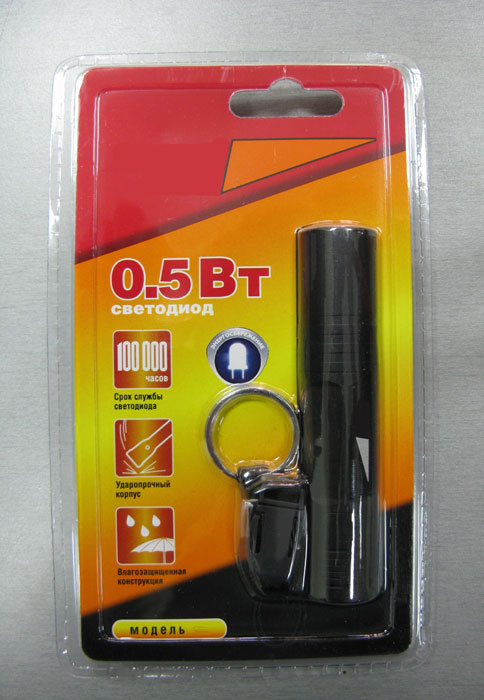

Torch
|
LED torch for working in low light conditions. Power - 0.5 watt, AA battery 1pc. (Included)
|
Metal marker
|
Universal wax marker for industrial marking. Color - yellow or red, width 12 mm, length 95 mm.
|
Thermostable chalk
|
Termostable chalk for marking the heated surface of metal products. Marking is resistant to temperatures up to 2000 ° C. The length - 100 mm, section - 10 mm
|
Illuminated magnifier
|
3x Magnifier with LED backlight for controlling in low light conditions
|

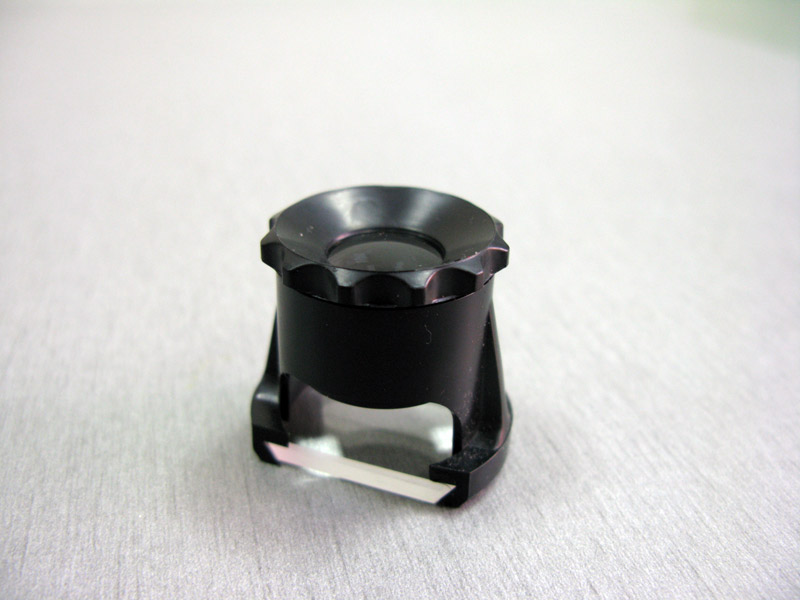

Measuring magnifier 10x
|
Magnifier for visual measurement and inspection. The length of the measuring scale - 15 mm, graduating mark - 0.1 mm
|
Set of clearance gauge № 4
|
Set to control the gap between the surfaces. Accuracy Class II, thickness range 0,1-1,0 mm
|

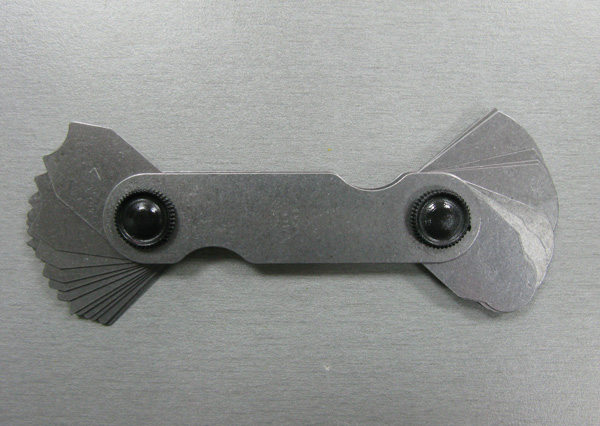

Set of radius probes № 1 (1-6mm)
|
Set of probes, to estimate the radius of convex and concave surfaces.
|
Set of radius probes № 3 (7-25mm)
|
Set of probes, to estimate the radius of convex and concave surfaces.
|

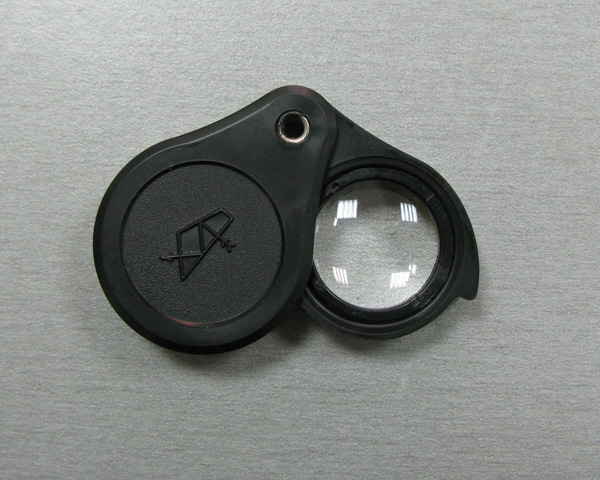

Magnifier 7x
|
Magnifier 7x for visual inspection
|
Measuring tape
|
Measuring tape, length 2m. or 10m, depending on configuration
|
Steel ruler
|
Steel ruler, length 20 cm and 30 cm depending on the configuration.
|

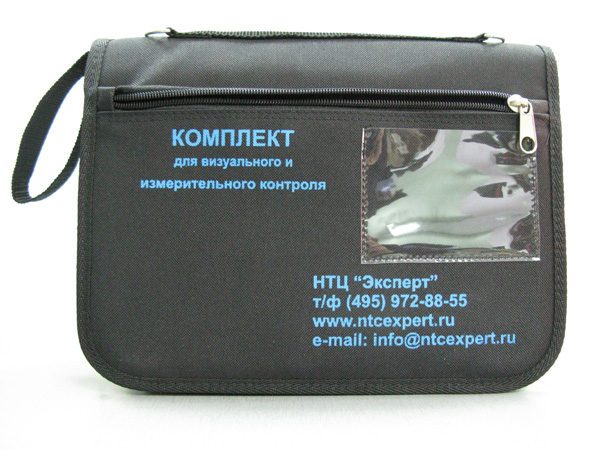

Packaging bag
|
Packaging bag
|
|
|
|
|
